Ask Claude for “open sales orders by customer” through the NetSuite AI Connector and you get a wall of text. The data is correct, but you can’t sort it, filter it, or click into a record. NetSuite MCP Apps change that: as of 2026.1, a custom tool can ship an actual UI, built with SuiteScript and React, that renders inside the chat.
We recently built and validated one end to end: a Saved Search Dashboard that renders natively in Claude.ai. This guide covers what MCP Apps are, how NetSuite supports them, how the pieces fit together, and the gotchas that cost us a couple of hours of debugging.
MCP is the open standard that lets AI clients (Claude, ChatGPT, and others) call tools on external servers in a uniform way. A server publishes a list of tools with JSON schemas, the model decides when to call them, and results flow back into the conversation. NetSuite’s AI Connector Service is an MCP server.
MCP Apps is an official extension to MCP that lets a tool declare an interactive HTML interface alongside its data. The naming is confusing, so a bit of history:
In short: MCP-UI came first, the Apps SDK validated it, and MCP Apps is the standard that came out of both. The reference implementation is the @modelcontextprotocol/ext-apps SDK, and as of June 2026 it is supported by Claude, Claude Desktop, VS Code Copilot, Goose, Postman, and a growing list of clients.
One scope note before we go on: everything in this guide was validated in Claude.ai specifically. ChatGPT support for NetSuite custom tools depends on how its MCP Apps rollout progresses, so test before promising it to a stakeholder.
Compared to text, an app gives you sorting, filtering, charts, and buttons. Compared to building a separate web app and pasting a link in the chat, MCP Apps give you three things a standalone page cannot:
If you followed our NetSuite AI Connector guide, you know the baseline: NetSuite exposes tools to AI clients like Claude over the Model Context Protocol (MCP), and the model answers questions by calling those tools and narrating the results as text.
That works for lookups (“what’s the balance on customer X?”). It breaks down for anything tabular. A saved search with 80 rows and six columns comes back as a truncated summary or an unreadable markdown table. You cannot sort it or drill into a row, and every follow-up question is another round trip through the model.
MCP Apps close that gap. The tool ships an HTML interface that the AI client renders inside the conversation: the model orchestrates, the UI handles the data. For a system as table-heavy as NetSuite, this changes what the AI Connector is actually useful for.
NetSuite’s side of this is the AI Connector Service plus the custom tool script type, and as of 2026.1 it explicitly supports MCP Apps. From Oracle’s documentation: “With MCP App support, your custom tool can provide a bundled HTML UI that is rendered directly in compatible AI chat clients.”
Three building blocks, all deployed via SDF:
| Piece | What it is | File in our project |
|---|---|---|
| Custom tool script | SuiteScript 2.1, @NScriptType CustomTool. Runs the server-side logic and returns data. | ss_dashboard_ct.js |
| JSON schema | Declares the tools, their input parameters, and (for MCP Apps) the UI resource via _meta.ui.resourceUri. | ss_dashboard_schema.json |
| Toolset object | The 2026.1 SDF object (<toolset>) that links script and schema and exposes them to the AI Connector. | custtoolset_ss_dashboard.xml |
Here is how those pieces sit between NetSuite and the AI client:
The toolset links script and schema; the schema points at the static HTML; the host renders it and bridges it back to the chat.
A few NetSuite-specific facts worth knowing up front:
name must equal the tool name in the schema.https://<accountid>.suitetalk.api.netsuite.com/services/mcp/v1/all (distinct from the Standard Tools SuiteApp).MCP-Sample-Tools/. Sample-App is the minimal MCP App and Sample-Toolsets shows the 2026.1 toolset object. We verified our contract against Sample-App directly.
The short version for whoever signs off on this:
readOnlyHint.postMessage bridge.The single most important design fact, and the one most people get wrong on day one:
The tool does not return HTML. It returns data.
The UI is a static, pre-built HTML file sitting in the File Cabinet. The tool’s schema points at it through _meta.ui.resourceUri, using the ui:// scheme, which NetSuite maps onto the File Cabinet (ui://SuiteScripts/... maps to /SuiteScripts/...). The host fetches that HTML on its own and renders it in a sandboxed iframe. The file never passes through your tool, so there is no server-side templating and no token injection.
Inside the iframe, the app uses the ext-apps SDK to talk to the host over postMessage. The host pushes the tool’s CallToolResult to the app through the ontoolresult callback; the app can answer back with sendMessage (inject a message into the chat), callServerTool (invoke another tool), sendLog, and openLink.
The full sequence for our dashboard:
Two parallel paths: the tool call returns data, the host loads the static UI from the schema’s resource URI, and the bridge joins them in the iframe.

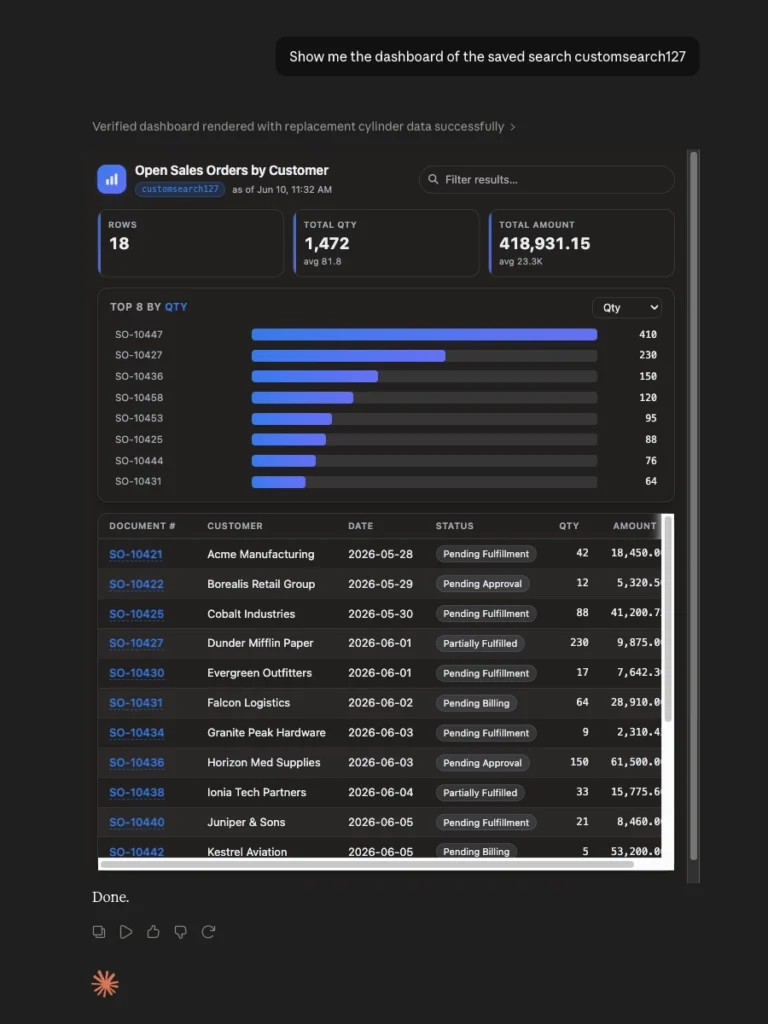

customsearch127 data. That’s the screenshot at the top of this article. The full SDF project behind it is available on request.toolset object and MCP Apps support require it).npm i -g @oracle/suitecloud-cli (CLI 3.1.4 as of June 2026).A SuiteScript 2.1 AMD module whose exported method name matches the tool name. It loads the search, caps rows at 200 (the chat does not want 10k rows), and returns plain data:
/**
* @NApiVersion 2.1
* @NScriptType CustomTool
*/
define(['N/search'], function (search) {
async function runDashboard(args) {
var ss = search.load({ id: args.savedSearchId });
// ... runPaged, map columns and rows (capped at 200) ...
return {
// Model-facing text: do not narrate, wait for the app.
toClaude: 'Ignore this response, it is intended only for the MCP App ss_dashboard. ' +
'The interactive dashboard for "' + args.savedSearchId + '" (' + total +
' rows) is now rendered; wait until the app tells you to continue.',
// Payload for the app. The bridge delivers it via app.ontoolresult.
dashboard: dashboard
};
}
return { runDashboard: runDashboard };
});Notice the two halves of the return value. toClaude is text aimed at the model, telling it not to re-narrate data the widget is already showing. dashboard is a plain JSON contract the app understands:
{
"title": "string",
"savedSearchId": "string",
"columns": [{ "label": "...", "key": "...", "type": "text|number|date|currency" }],
"rows": [{ "<key>": "value", "__id": "internalId" }],
"meta": { "total": 0, "truncated": false, "generatedAt": "ISO" }
} The UI lives in the schema, not in the return value. annotations give the client hints (read-only, idempotent), and _meta.ui.resourceUri is what turns a normal tool into an MCP App:
{
"tools": [{
"name": "runDashboard",
"description": "Runs a NetSuite saved search and shows it as an interactive dashboard...",
"inputSchema": {
"type": "object",
"properties": {
"savedSearchId": { "type": "string", "description": "scriptId or internal id of the saved search" },
"limit": { "type": "number", "description": "Max rows to fetch (cap 200)" }
},
"required": ["savedSearchId"]
},
"annotations": {
"title": "NetSuite Saved Search Dashboard",
"readOnlyHint": true,
"idempotentHint": true,
"openWorldHint": false
},
"_meta": {
"ui": { "resourceUri": "ui://SuiteScripts/mcp-ss-dashboard/mcp-app.html" }
}
}]
}NetSuite documents the supported inputSchema property types as string, number, and boolean, so use number (not integer). Keep this file ASCII-only and avoid the JSON Schema default keyword; if you do not, NetSuite silently drops the whole file and none of your tools show up (see Gotcha #1).
The 2026.1 toolset object ties script and schema together and declares the permissions required for the tool to be visible in the AI client. Runtime access is still limited by the connected NetSuite role:
<toolset scriptid="custtoolset_ss_dashboard">
<name>Saved Search Dashboard</name>
<scriptfile>[/SuiteScripts/mcp-ss-dashboard/ss_dashboard_ct.js]</scriptfile>
<rpcschema>[/SuiteScripts/mcp-ss-dashboard/ss_dashboard_schema.json]</rpcschema>
<exposetoaiconnector>T</exposetoaiconnector>
<permissions>
<permission>
<permkey>TRAN_FIND</permkey>
<permlevel>VIEW</permlevel>
</permission>
</permissions>
</toolset> The UI is an ordinary React app. The bridge is a single hook from @modelcontextprotocol/ext-apps/react:
import { useApp } from "@modelcontextprotocol/ext-apps/react";
const { app, isConnected, error } = useApp({
appInfo: { name: "ss_dashboard", version: "1.0.0" },
capabilities: {},
onAppCreated: (instance) => {
instance.ontoolresult = async (result) => {
const dashboard = extractDashboard(result);
if (dashboard) setData(dashboard);
};
},
});extractDashboard() reads the CallToolResult defensively: it tries result.structuredContent first, then falls back to parsing result.content[].text as JSON. The reason is that Oracle’s docs do not pin down exactly how NetSuite wraps your return object into the CallToolResult the host delivers. Reading both shapes meant our first render worked without a second deploy.
The bidirectional hook is already wired in. Clicking a row’s first column sends a message back into the conversation:
void app.sendMessage({
role: "user",
content: [{ type: "text",
text: `Open the record "${label}" (internal id ${id}) from saved search ${data.savedSearchId}.` }],
});The user clicks a row and Claude picks the thread back up with that record in context.
The iframe is sandboxed, so assume no CDN access at runtime. We use Vite with vite-plugin-singlefile to inline React, the SDK, and the CSS into one self-contained HTML file (about 540 KB), then copy it into the File Cabinet folder:
npm install # once: installs the app workspace npm run ss_dashboard # tsc + vite singlefile -> src/FileCabinet/.../mcp-app.html
Theme with the host’s CSS variables (with fallbacks) and do not import fonts. The widget should inherit the client’s look and feel.
suitecloud account:setup # once: auth id suitecloud project:validate --server # validate against the real 2026.1 account suitecloud project:deploy
Local validation will complain that the toolset is “categorized as a data file”. Ignore it (Gotcha #2) and use --server validation, which knows the 2026.1 types.
ADMI_MCP_SERVER), Log in using OAuth 2.0 Access Tokens (ADMI_LOGIN_OAUTH2), and whatever permissions the saved search needs at runtime.https://<accountid>.suitetalk.api.netsuite.com/services/mcp/v1/all
_meta.ui.
In a new chat:
“Use runDashboard to show me the dashboard for saved search customsearch127”
Expected: Claude calls the tool, the widget mounts, and the dashboard draws with live rows. If the frame mounts but sits on “Waiting for the saved search data…”, the NetSuite-to-ontoolresult mapping did not match your extractor. Open the iframe’s devtools console, inspect the actual CallToolResult, and adjust.
These cost us roughly two hours of debugging, and none of them are in the docs.
tools[].inputSchema contains anything non-standard, NetSuite drops the entire schema file and none of its tools appear in tools/list. There is no error and no log. Confirmed culprits: the JSON Schema "default" keyword on a property, and non-ASCII characters (accented letters) in description fields. Keep schemas ASCII-only and stick to the subset Oracle’s samples use: name, description, inputSchema (type, properties, required), annotations, _meta.ui. This was the root cause of our tool “not existing” for most of those two hours.project:validate degrades the toolset to “data file” and object:import fails with “Invalid Record Type”. Both are red herrings: the server-side deploy creates the object correctly. Validate with --server and move on./services/mcp/v1/all custom-tools endpoint. “Add custom connector” is the way in.A read-only dashboard is step one. The same architecture supports a lot more, and this is where we are taking it:
app.sendMessage. Upgrading it to app.callServerTool lets buttons in the widget trigger server-side tools: fulfill an order, apply a payment, approve a record, with the user in the loop.The general shape: any NetSuite process that today means “open a list, scan it, click into a few records, take an action” can become a single prompt plus a purpose-built widget.
NetSuite MCP Apps work today, and the developer experience is closer to “normal SuiteScript plus normal React” than you might expect: a CustomTool script that returns data, a JSON schema pointing at a static single-file HTML, a 2026.1 toolset object, and the ext-apps bridge in between. The hard part is not the architecture; it is the sharp edges: a schema parser that fails silently, a CLI one version behind, the wrong connector tile, the wrong role. All of those are covered above.
If you are looking at what conversational, interactive interfaces could do for your NetSuite processes, from read-only dashboards to approval workflows, that is the kind of work we do at UnlockCommerce. As a NetSuite Alliance Partner with 350+ eCommerce projects delivered, we can help you scope it. Get in touch and let’s talk about your use case.
Yes. As of NetSuite 2026.1, a custom tool can ship a bundled HTML interface that renders inside compatible AI clients. NetSuite calls this MCP App support. The tool returns data, NetSuite serves a static HTML file from the File Cabinet, and the AI client renders it in a sandboxed iframe.
The AI Connector Service is NetSuite’s MCP server. It lets AI clients call tools and get results back as text. An MCP App adds an interactive interface to a custom tool, so a tabular saved search renders as a sortable, filterable widget instead of a wall of text.
This build was validated in Claude specifically. The MCP Apps extension is supported by a growing list of clients, but ChatGPT support for NetSuite custom tools depends on how its rollout progresses. Test in your target client before committing to it with a stakeholder.
Tools run with the permissions of the connected role, never more, and the AI Connector refuses Administrator and full-permission roles. The UI is sandboxed and cannot reach the host page, its cookies, or its storage. Keep credentials server-side and never bundle secrets into the HTML file.
The most common cause is a schema the parser rejects silently. A JSON Schema “default” keyword, or a non-ASCII character in a description, makes NetSuite drop the entire schema file with no error and no log. Keep schemas ASCII-only, and confirm you are not connecting as Administrator.
A NetSuite account on 2026.1, Server SuiteScript and OAuth 2.0 enabled, the SuiteCloud CLI (Node.js 22 LTS and Oracle JDK 17 or 21), and Node 20.19+ for the UI build. You also need a saved search to render and a scoped, non-Administrator role.
